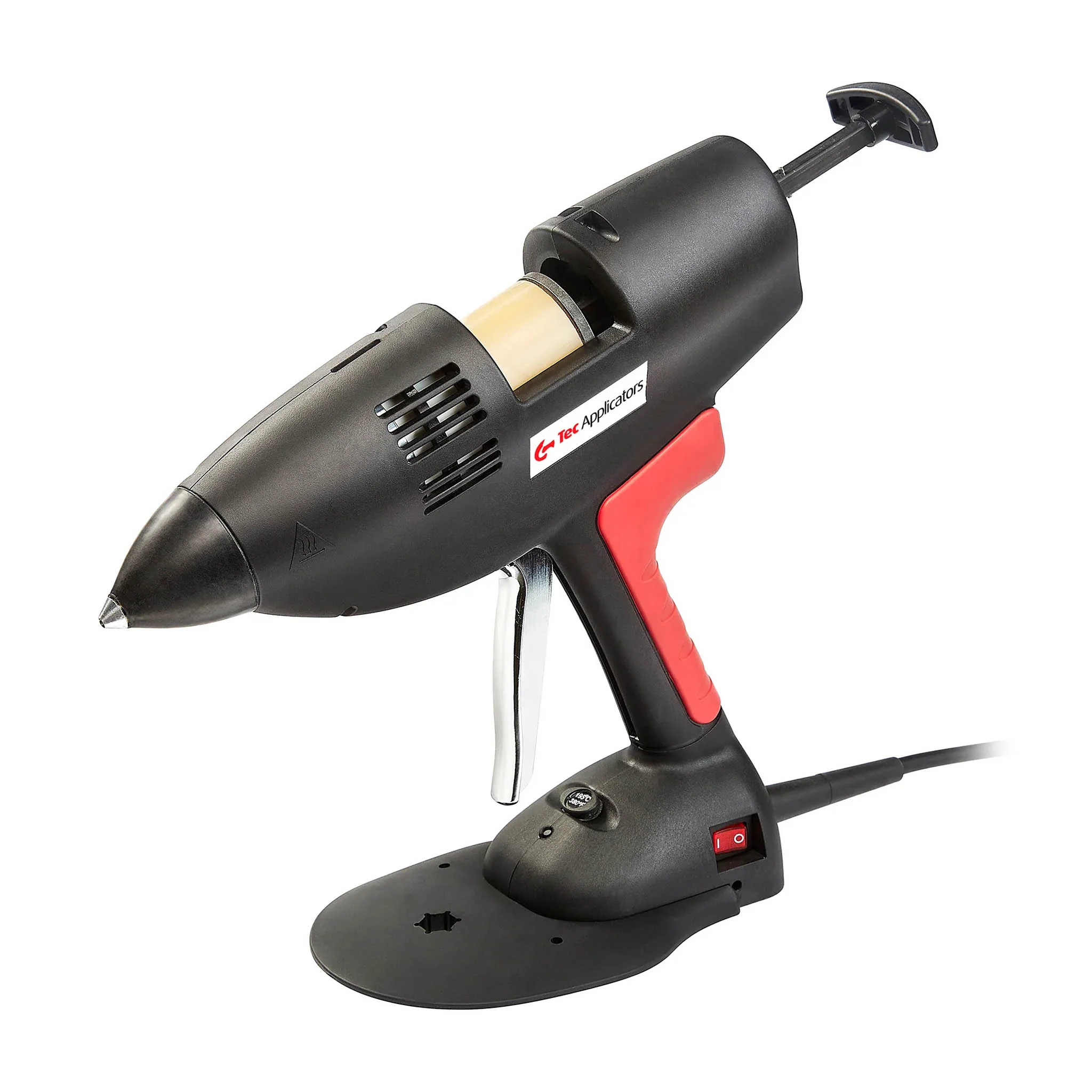

Power Adhesives Tec 6300 Pneumatic Hot Melt Spray Glue Gun

The Power Adhesives Tec 6300 is a high-output, pneumatic 1-3/4" (43mm) hot melt spray applicator, designed for large-area coverage and heat-sensitive substrates. Unlike traditional solvent-based spray adhesives, the Tec 6300 uses compressed air to create a swirl spray pattern, ensuring VOC-free, safe, and precise adhesive application. With a high melt rate of 10 lbs (4.2kg) per hour, an easy-click trigger, and a removable base for better reach, this glue gun is ideal for industrial bonding applications requiring even coverage and reduced user fatigue.

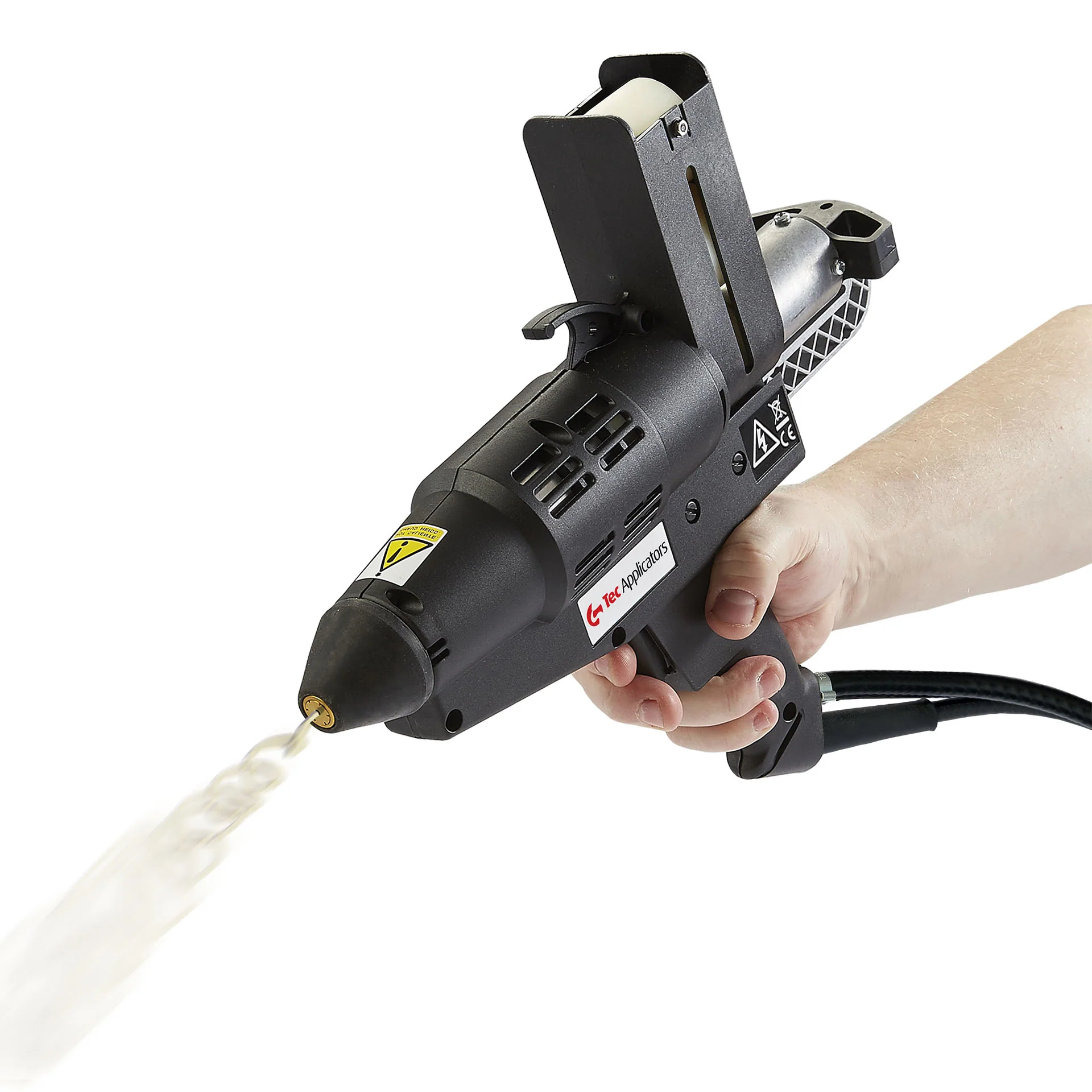

Looking for maximum spray output? The Tec 7300 enhances the Tec 6300 with a stronger heater, faster reloading, and 11.25 lb/hr melt rate.

Tec 6300 Features & Benefits

• High-Output Performance: Dispenses up to 10 lbs (4.2kg) per hour, ensuring efficient adhesive application.

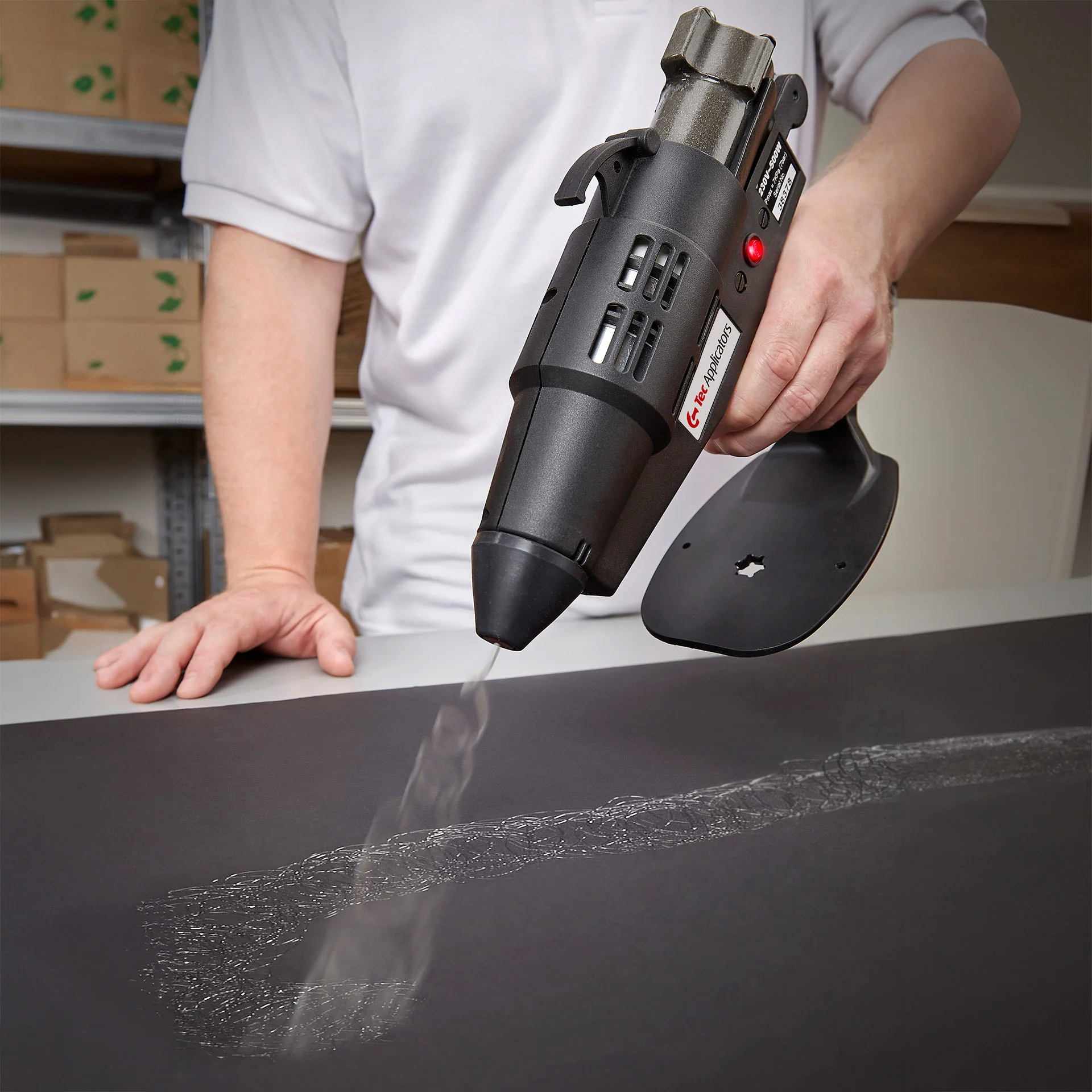

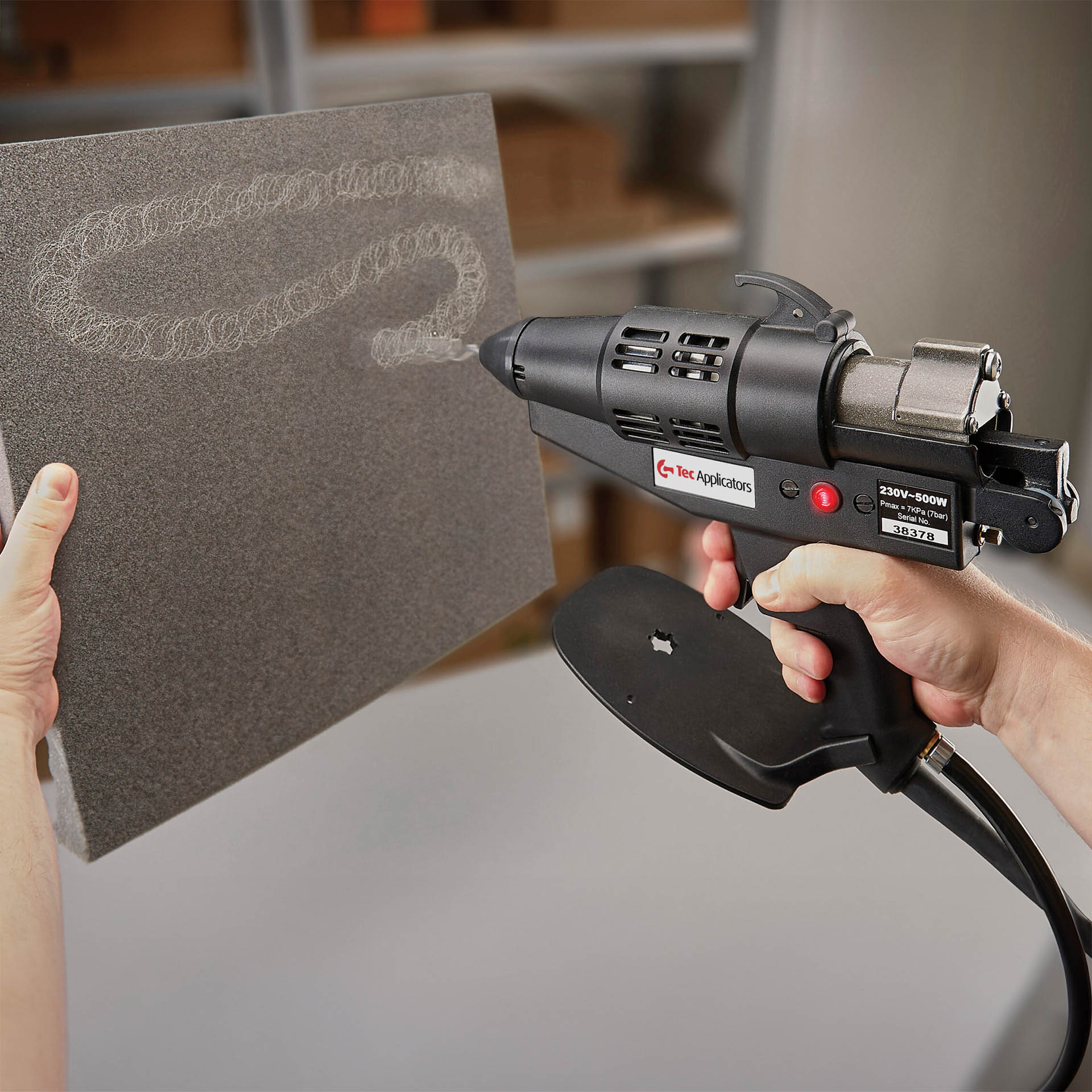

• Pneumatic Spray Application: Compressed air forms a swirl/spiral spray pattern, covering large areas quickly and efficiently.
• Solvent-Free & VOC-Free: Eliminates harmful chemicals, making it safer for operators and reducing the need for respiratory PPE.
• Easy-Click Trigger: A single press activates continuous spraying, reducing operator fatigue.
• Cooler Application Temperature: Adhesive is applied at a lower temperature, preventing burns and protecting heat-sensitive materials.
• Removable Base & Built-In Stand: Provides stability when resting and detaches for better access in tight areas.
• Certified & Reliable: Meets UKCA, CE, and UL standards and includes a 12-month manufacturer warranty.

Specifications

• Model: Tec 6300-43

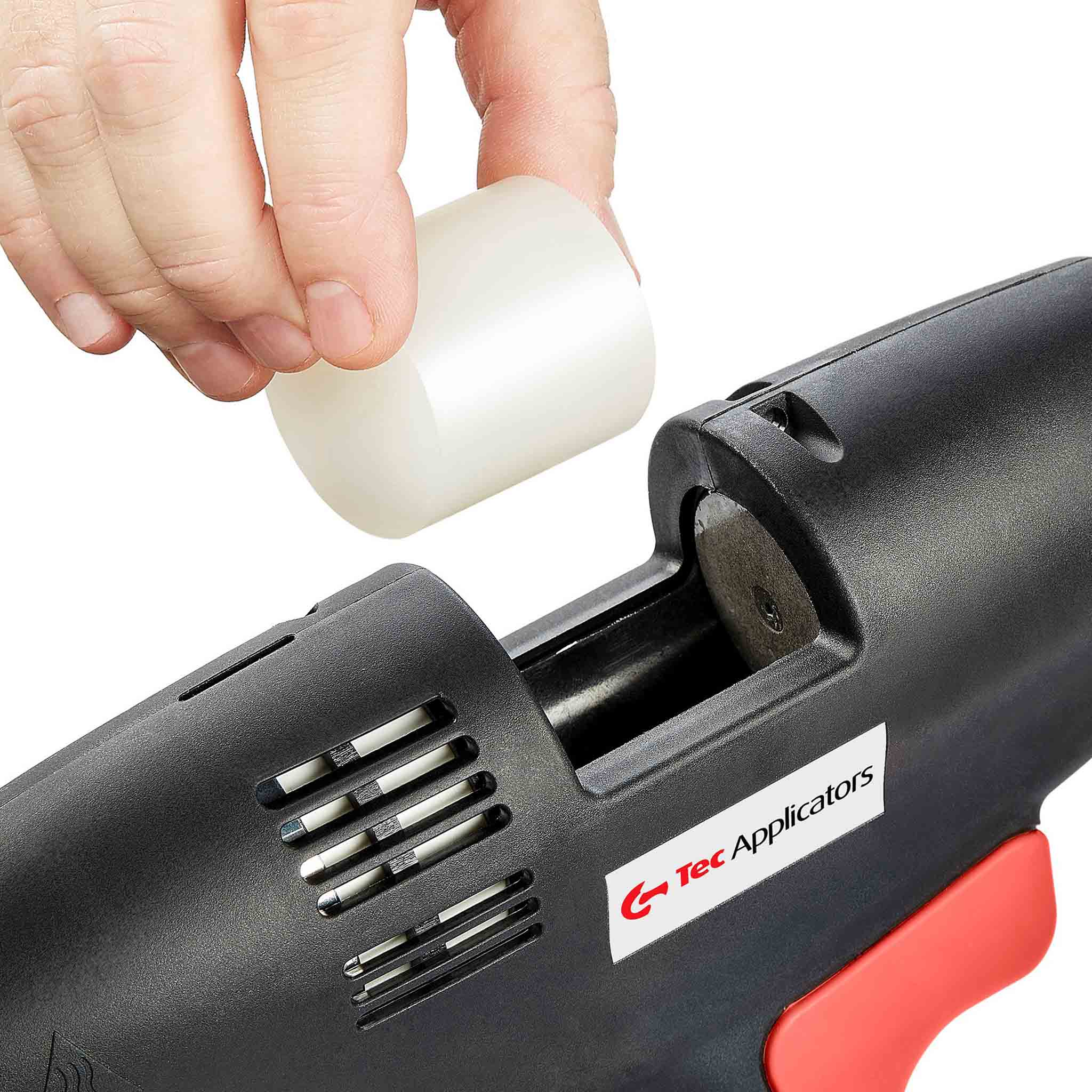

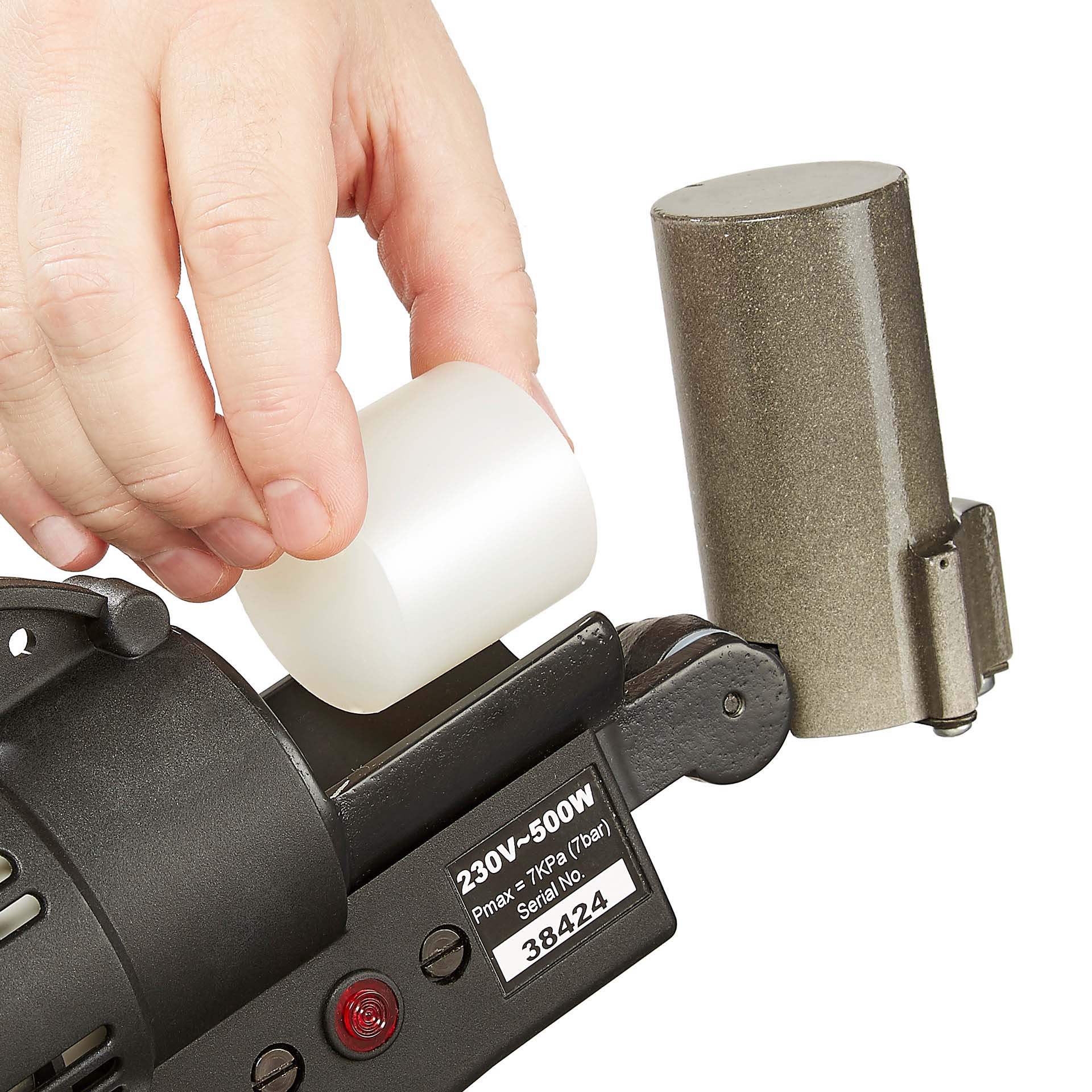

• Glue Size: 1-3/4" (43mm) Slugs
• Voltage 120V (U.S. Plug)
• Wattage: 500W
• Melt Rate: 10 lbs (4.2kg)/hr
• Heater: Cartridge
• Feed System: Pneumatic
• Temperature: 356°F (180°C)
• Output Method: Spray
• Power Source: Power Cord
• Plug Type: U.S. Style
• Weight: 3 lbs (1.4kg)

Applications & Industries

• Large Surface Bonding
• Foam & Fabric Applications
• Furniture & Upholstery
• Packaging & Carton Sealing
• Automotive & Aerospace Assembly

Tec 6300 Spray Glue Gun Nozzles

• Narrow Angle Spray Nozzle 1.2mm Orifice (PA6045)
• Narrow Angle Spray Nozzle 1.5mm Orifice (PA6046)
• Narrow Angle Spray Nozzle 2.0mm Orifice (PA6056)
• Medium Angle Spray Nozzle 1.5mm Orifice (PA 6061)
• Medium Angle Spray Nozzle 2.00mm Orifice (PA 6060)
• Wide Angle Spray Nozzle 2.00mm Orifice (PA6064)

Tec 6300 Spray Glue Gun Thermostats

• For Low Melts 130°C (AED015)
• For Hot Melts 180°C (AED012) *Standard with glue gun
• For Hot Melts 195°C (AED010)
