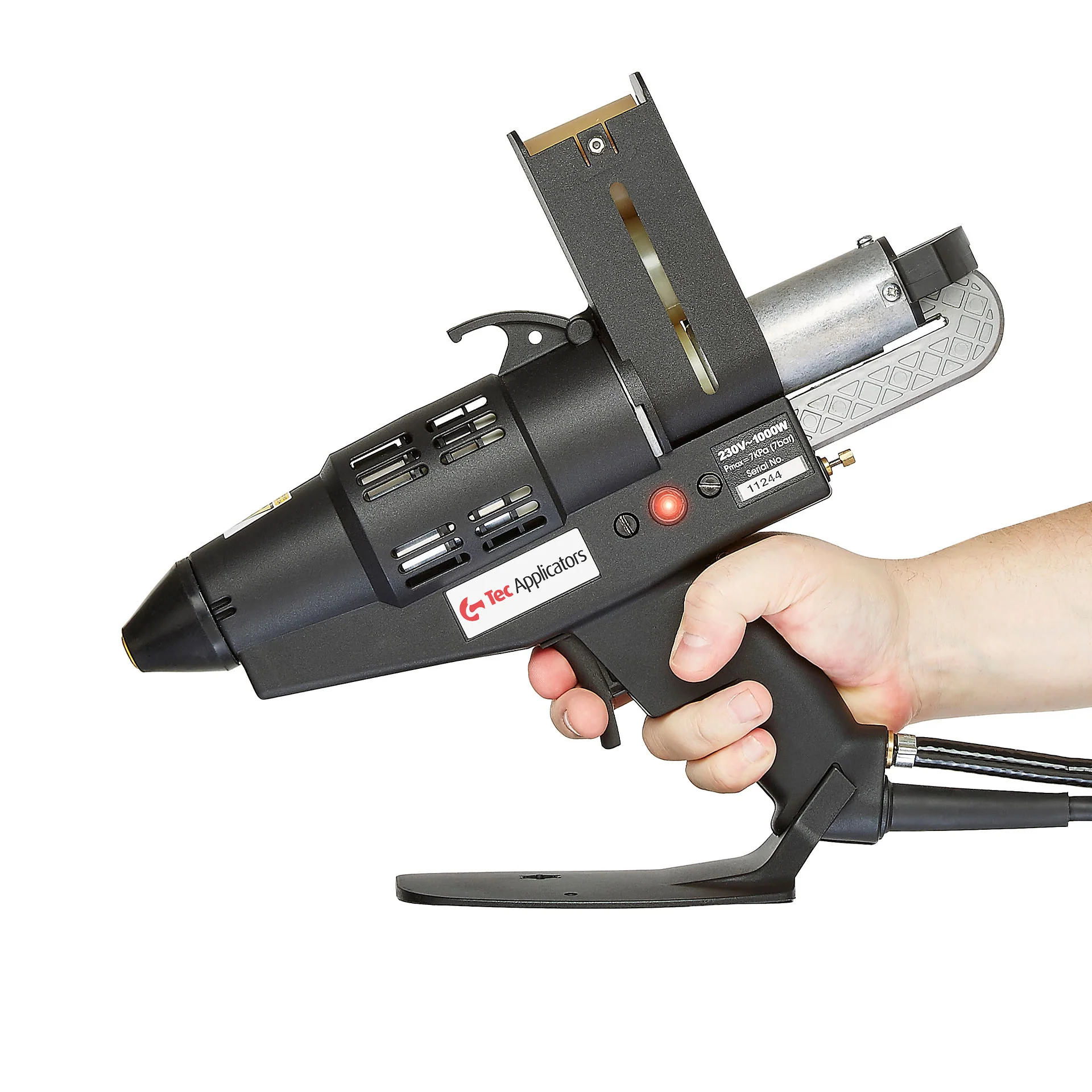

Tec 7300 Fast Reloading Pneumatic Hot Melt Spray Gun

Designed for demanding, high-volume applications, the Power Adhesives Tec 7300 is a pneumatically assisted hot melt spray gun capable of delivering up to 11.25 lbs of adhesive per hour. It dispenses 1-3/4" (43 mm) hot melt adhesive and is optimized for large surface areas and heat-sensitive materials, providing fast coverage without excessive heat transfer.

Building on the performance of the Tec 6300, the Tec 7300 features increased output, a speed loader magazine for quicker reloading, and a more powerful heating system to support continuous operation. A compressed air-driven swirl spray pattern ensures uniform adhesive distribution, while the solvent-free, VOC-free design allows for safer use without the need for respiratory protective equipment.

When precision and reliability matter, the Tec 6300 stands out with high-performance spray bonding at a 10 lbs/hr rate, ideal for heat-sensitive applications.

Tec 7300 Features & Benefits

• Maximum Output Performance: Dispenses up to 11.25 lbs (5.25 kg) of adhesive per hour, making it Power Adhesives’ highest-output spray applicator.

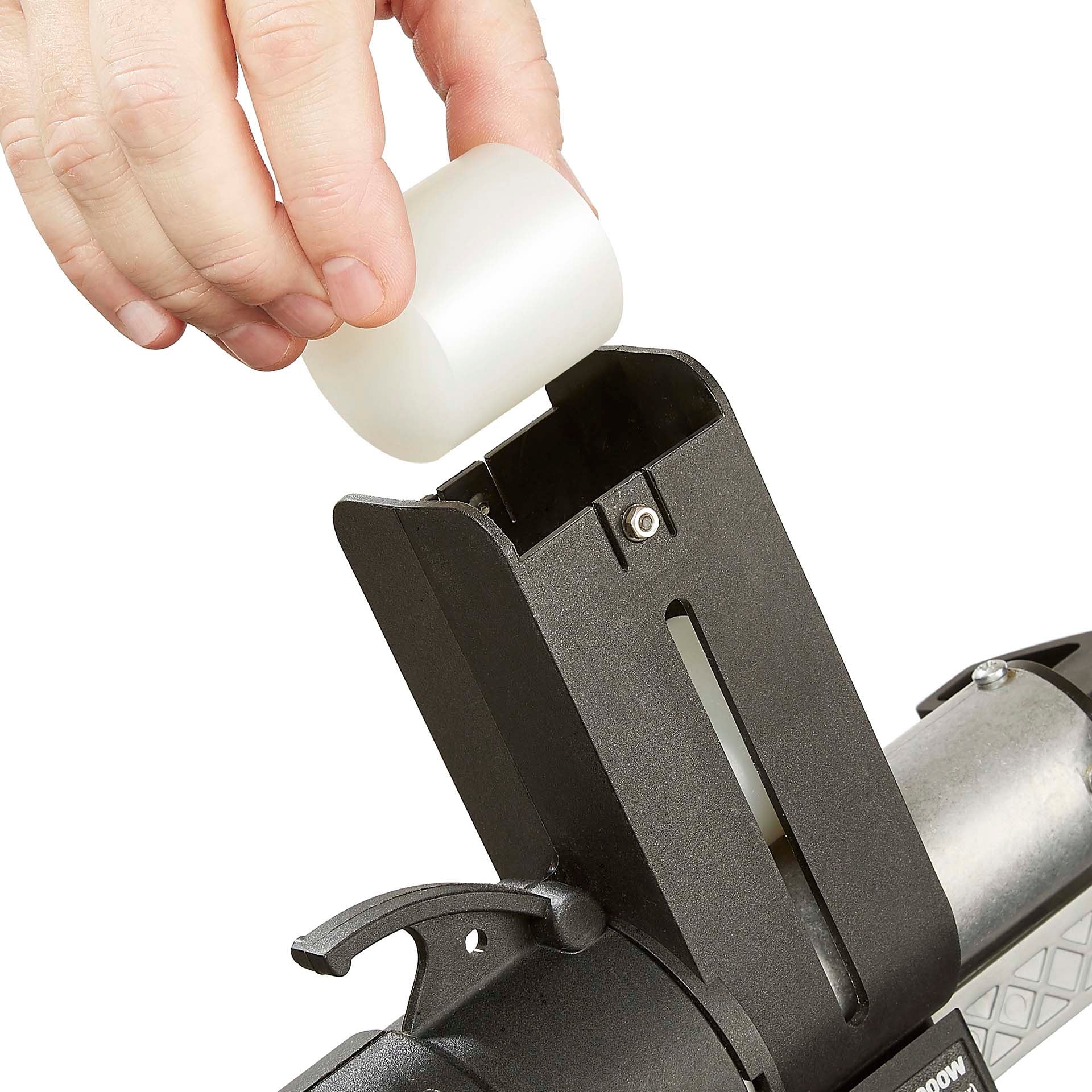

• High-Capacity Speed Loader Magazine: Accommodates multiple glue slugs to speed up reloading and minimize downtime.
• Air-Powered Spray Technology: Utilizes compressed air to generate a vortex-style spray pattern for broad, uniform adhesive coverage.
• Solvent-Free, VOC-Free Formula: Free of harmful chemicals, supporting a safer work environment and reduced environmental impact.
• One-Touch Easy-Click Trigger: Continuous spray is activated with a single trigger press, increasing efficiency while reducing operator strain.
• Lower Application Temperature: Adhesive is applied at a cooler temperature than traditional hot melt, making it suitable for heat-sensitive materials.
• Detachable Base with Integrated Stand: Provides stable placement during rest and can be removed to improve access in confined work areas.
• Safety Certified & Warranty Included: Complies with UKCA, CE, and UL standards and is supported by a 12-month manufacturer warranty.

Specifications

• Model: Tec 7300-43

• Glue Size: 1-3/4" (43mm) Slugs

• Voltage 120V (U.S. Plug)

• Wattage: 1000W

• Melt Rate: 11.25 lbs (5.25 kg)/hr

• Heater: Cartridge

• Feed System: Pneumatic

• Temperature: 350°F (180°C)

• Output Method: Spray

• Power Source: Power Cord

• Plug Type: U.S. Style
• Weight: 5 lbs (2.3kg)


Applications & Industries

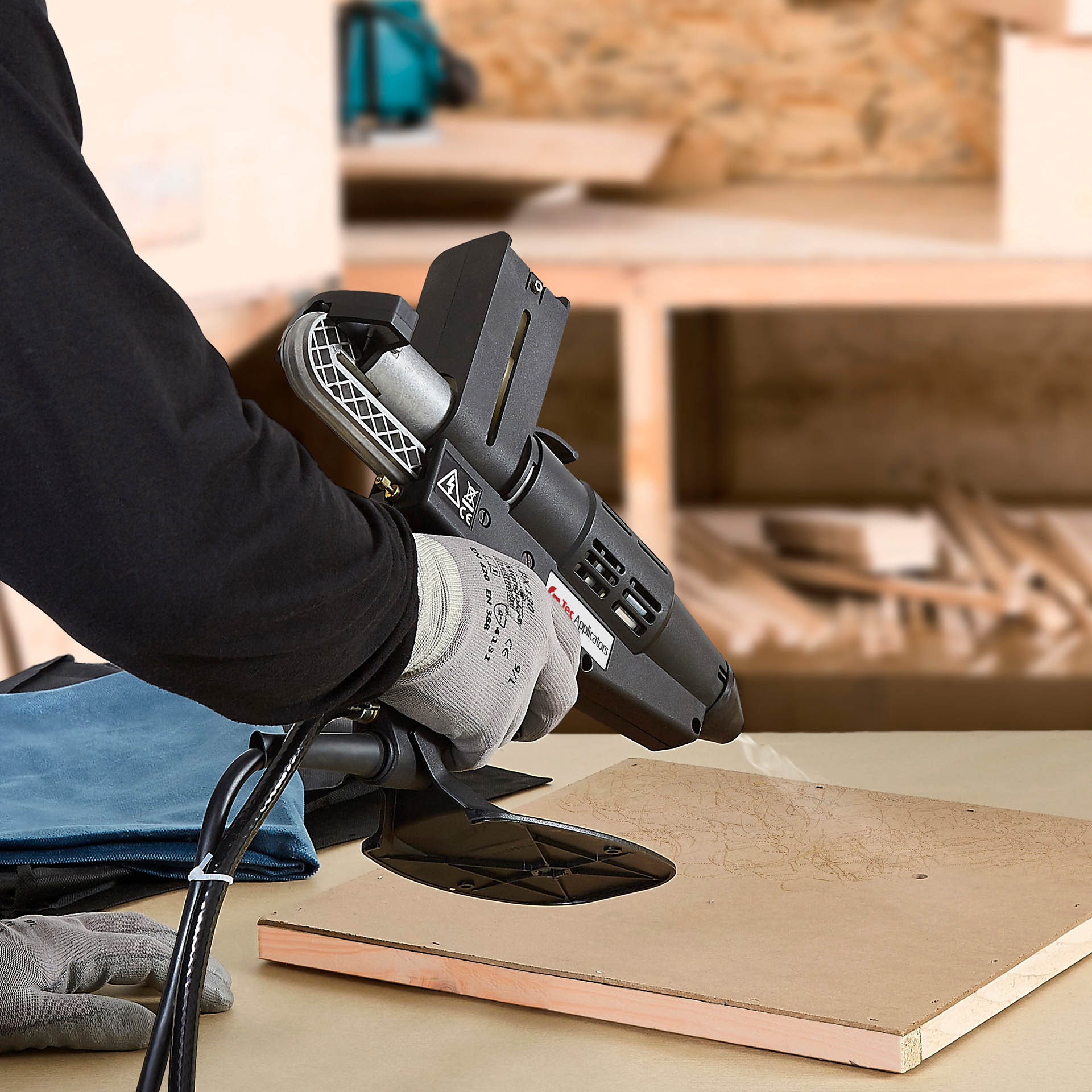

• Large Surface Bonding

• Foam & Fabric Applications

• Furniture & Upholstery

• Packaging & Carton Sealing

• Automotive & Aerospace Assembly

Nozzles and Accessories

Tec 7300 Spray Glue Gun Nozzles

• Narrow Angle Spray Nozzle 1.2mm Orifice (PA6045)
• Narrow Angle Spray Nozzle 1.5mm Orifice (PA6046)
• Narrow Angle Spray Nozzle 2.0mm Orifice (PA6056)
• Medium Angle Spray Nozzle 1.5mm Orifice (PA 6061)
• Medium Angle Spray Nozzle 2.00mm Orifice (PA 6060)
• Wide Angle Spray Nozzle 2.00mm Orifice (PA6064)

Tec 7300 Spray Glue Gun Thermostats

• For Hot Melts 180°C (AED023)*Standard with glue gun

Tec 7300 Accessories

• Metal Gun Stand (PA3096-SPARES)
